Spring Security Custom Login Page

In this Spring Security tutorial, we will learn how to create a custom login page to implement Spring Security's form-based authentication.

By default, Spring Security provides a built-in Login form to secure the web application. But, most of the time we need create custom Login page as per our requirement.

Maven Dependencies

Add below two Maven dependencies to your Spring Boot project:
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-security</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-thymeleaf</artifactId>
		</dependency>

Spring Security Configuration

Most production applications require a custom login form. The following configuration demonstrates how to provide a custom login form.
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.provisioning.InMemoryUserDetailsManager;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;

@Configuration
public class SpringSecurityConfig {

    @Bean
    public static PasswordEncoder passwordEncoder(){
        return new BCryptPasswordEncoder();
    }

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        http.csrf().disable()
                .authorizeHttpRequests((authorize) ->
                        authorize.anyRequest().authenticated()
                ).formLogin(
                        form -> form
                                .loginPage("/login")
                                .loginProcessingUrl("/login")
                                .defaultSuccessUrl("/welcome")
                                .permitAll()
                ).logout(
                        logout -> logout
                                .logoutRequestMatcher(new AntPathRequestMatcher("/logout"))
                                .permitAll()
                );
        return http.build();
    }

    @Bean
    public UserDetailsService userDetailsService(){

        UserDetails ramesh = User.builder()
                .username("ramesh")
                .password(passwordEncoder().encode("password"))
                .roles("USER")
                .build();

        UserDetails admin = User.builder()
                .username("admin")
                .password(passwordEncoder().encode("admin"))
                .roles("ADMIN")
                .build();

        return new InMemoryUserDetailsManager(ramesh, admin);
    }
}

When the login page is specified in the Spring Security configuration, you are responsible for rendering the page.

Thymeleaf Template - Custom Login Page

The following Thymeleaf template produces an HTML login form that complies with a login page of /login.

Login Form - src/main/resources/templates/login.html

<!DOCTYPE html>
<html lang="en"
      xmlns:th="http://www.thymeleaf.org"
>
<head>
    <meta charset="UTF-8">
    <title>Login System</title>
    <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.0.2/dist/css/bootstrap.min.css"
          rel="stylesheet"
          integrity="sha384-EVSTQN3/azprG1Anm3QDgpJLIm9Nao0Yz1ztcQTwFspd3yD65VohhpuuCOmLASjC"
          crossorigin="anonymous">
</head>
<body>
<nav class="navbar navbar-expand-lg navbar-dark bg-dark">
    <div class="container-fluid">
        <a class="navbar-brand" th:href="@{/index}">Spring Security Custom Login Example</a>
        <button class="navbar-toggler" type="button" data-bs-toggle="collapse" data-bs-target="#navbarSupportedContent" aria-controls="navbarSupportedContent" aria-expanded="false" aria-label="Toggle navigation">
            <span class="navbar-toggler-icon"></span>
        </button>
    </div>
</nav>
<br /><br />
<div class="container">
    <div class="row">
        <div class="col-md-6 offset-md-3">

            <div th:if="${param.error}">
                <div class="alert alert-danger">Invalid Email or Password</div>
            </div>
            <div th:if="${param.logout}">
                <div class="alert alert-success"> You have been logged out.</div>
            </div>

            <div class="card">
                <div class="card-header">
                    <h2 class="text-center">Login Form</h2>
                </div>
                <div class="card-body">
                    <form
                            method="post"
                            role="form"
                            th:action="@{/login}"
                            class="form-horizontal"
                    >
                        <div class="form-group mb-3">
                            <label class="control-label"> Email</label>
                            <input
                                    type="text"
                                    id="username"
                                    name="username"
                                    class="form-control"
                                    placeholder="Enter email address"
                            />
                        </div>

                        <div class="form-group mb-3">
                            <label class="control-label"> Password</label>
                            <input
                                    type="password"
                                    id="password"
                                    name="password"
                                    class="form-control"
                                    placeholder="Enter password"
                            />
                        </div>
                        <div class="form-group mb-3">
                            <button type="submit" class="btn btn-primary" >Submit</button>
                            <span> Not registered ?
                                <a th:href="@{/register}">Register/Signup here</a>
                            </span>
                        </div>
                    </form>
                </div>
            </div>
        </div>
    </div>
</div>
</body>
</html>

There are a few key points about the custom Login HTML form:

  • The form should perform a post to /login
  • The form should specify the username in a parameter named username
  • The form should specify the password in a parameter named password
  • If the HTTP parameter named error is found, it indicates the user failed to provide a valid username or password.
  • If the HTTP parameter named logout is found, it indicates the user has logged out successfully.
  • Many users do not need much more than to customize the login page. However, if needed, you can customize everything shown earlier with additional configuration.

Spring MVC Controller

Let's create a handler method in the Spring MVC controller that maps GET /login to the login template we created:

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;

@Controller
public class WelComeController {

    @GetMapping("/welcome")
    public String greeting() {
        return "welcome";
    }

    @GetMapping("/login")
    public String login(){
        return "login";
    }
}

Note that we have also created a welcome handler method to return the welcome Thymeleaf template page.

Thymeleaf Template - welcome.html

Once the user login success then this welcome page will be displayed:
<!DOCTYPE html>
<html lang="en"
      xmlns:th="http://www.thymeleaf.org"
>
<head>
    <meta charset="UTF-8">
    <title>Registration and Login System</title>
    <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.0.2/dist/css/bootstrap.min.css"
          rel="stylesheet"
          integrity="sha384-EVSTQN3/azprG1Anm3QDgpJLIm9Nao0Yz1ztcQTwFspd3yD65VohhpuuCOmLASjC"
          crossorigin="anonymous">
</head>
<body>
<nav class="navbar navbar-expand-lg navbar-dark bg-dark">
    <div class="container-fluid">
        <a class="navbar-brand" th:href="@{/index}">Spring Security Custom Login Example</a>
        <button class="navbar-toggler" type="button" data-bs-toggle="collapse" data-bs-target="#navbarSupportedContent" aria-controls="navbarSupportedContent" aria-expanded="false" aria-label="Toggle navigation">
            <span class="navbar-toggler-icon"></span>
        </button>
        <div class="collapse navbar-collapse" id="navbarSupportedContent">
            <ul class="navbar-nav me-auto mb-2 mb-lg-0">
                <li class="nav-item">
                    <a class="nav-link active" aria-current="page" th:href="@{/logout}">Logout</a>
                </li>
            </ul>
        </div>
    </div>
</nav>
<br /><br />

<body>
<div class="container">
    <div class="row">
        <h1> Welcome to Spring Security world!</h1>
    </div>
</div>

</body>
</html>

Test Custom Login Page using Browser

Enter the URL http://localhost:8080 in the browser, and it will navigate to the login page. Next, enter a username as admin, password as admin, and click on the Sign-in button:


After successful login, you will see the below web page:

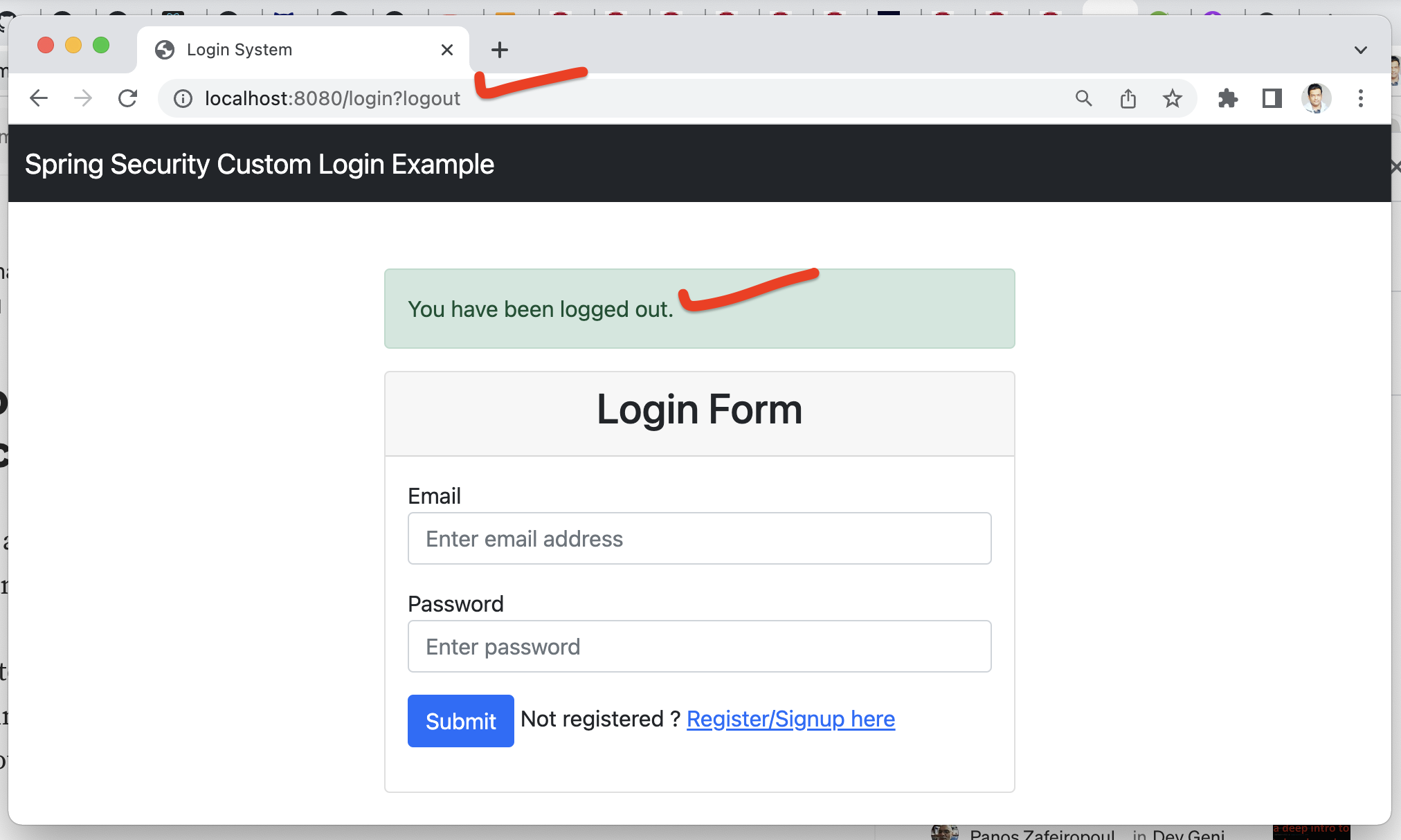

Built-In Logout Feature

Spring Security provided a built-in logout feature as well. Just click on the logout button in the application to login from the application:

Conclusion

In this Spring Security tutorial, we learned how to create a custom login page to implement Spring Security's form-based authentication.
